Legal first.
APA/ARH Norte registration, DGS notification, and a Legionella Prevention Plan under Lei 52/2018 are required before guests touch a single tap. We map every step.
Off-Grid Infrastructure
Designed
Water Without the Grid
Rain from the roof, filtered through stone and biology, UV-certified before a single guest touches it — that is the Lusitano water standard. A 50-agent research report turns seven sources and three build levels into a practical blueprint you can act on.
- Rainwater
- Borehole
- UV Certified
- 3 Levels
Why water is the first layer
Every retreat lives or dies by its water
Norte Portugal receives 1,000–1,950 mm of rain a year — more than enough. The challenge is the 90-day summer drought, the granite aquifer quality, and the legal framework that governs every litre guests consume. We researched all three.
Radon alert.
Norte Portugal granite aquifers show radon up to 2,295 Bq/L — the EU limit is 100. Every borehole needs a lab test before use.
Multi-barrier, not single-point.
Sediment → slow sand → activated carbon → UV is the minimum safe train. Chlorination alone does not inactivate Cryptosporidium from cattle in upland streams.
Three build levels.
Level A (under €600, build sprint) → Level B (small retreat, ~€6,400) → Level C (20–50 guests, €20k–45k). Each level is costed to the component.

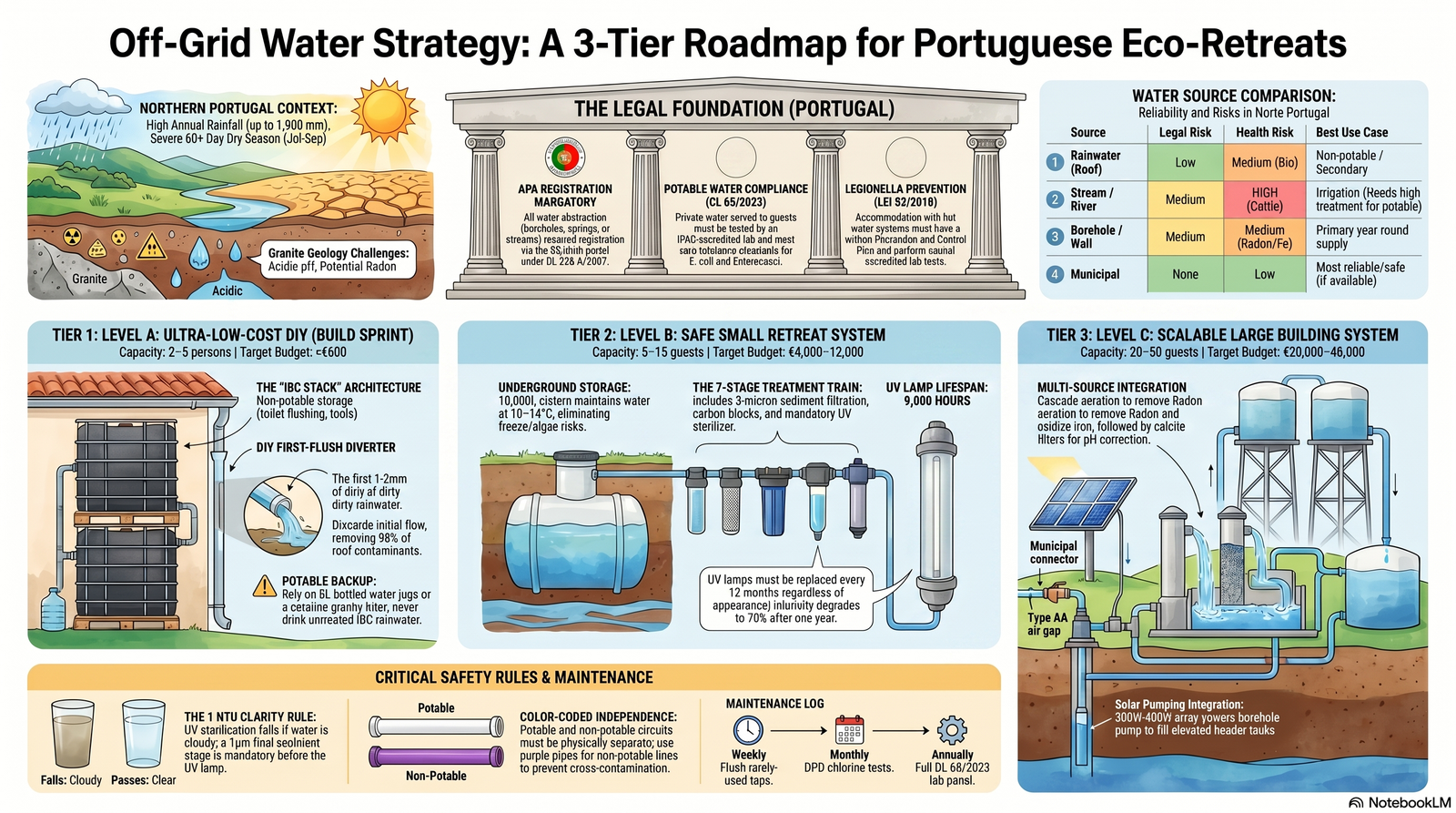

Full strategy on one page
The Lusitano Water Blueprint
Six water sources compared. Three build levels costed. Fourteen technical components mapped. Legal requirements for Portugal summarised.
Three build levels
Start cheap, scale safely
Build Sprint MVP
Under €600
Two food-grade IBCs from OLX (€45 each), a DIY first-flush diverter, gutter run, and bottled water for drinking. Non-potable system ready in a weekend. Drinking stays bottled until the full treatment train is tested.
Safe Small Retreat
~€6,400
10,000 L underground cistern, Big Blue sediment filter, 1-micron carbon block, Innest 30L LED UV steriliser (€329), Pedrollo surface pump, 100 L INOX accumulator. Separate potable and non-potable circuits with purple pipe.
Full Licensed System
€20,000–45,000
Borehole primary + rainwater secondary + mains emergency. pH correction, cascade aerator, iron/manganese filter, VIQUA VH200 (NSF 55), INOX break tank, Grundfos booster, DIY reed bed for greywater recycling, solar pump integration.
The legal path
Before a guest drinks a single drop
Portugal regulates every litre served to the public. This is the exact sequence we follow — confirm specifics with your câmara and lawyer before drilling or serving water.
Register the source
A borehole, spring capture or stream abstraction needs a TURH licence or registration with APA/ARH Norte before use (DL 226-A/2007). Roof rainwater used for irrigation and toilets needs no licence.
Test before you trust
Accredited lab analysis before first use — including radon (Norte granite aquifers reach 2,295 Bq/L against a 100 Bq/L EU screening level), arsenic, nitrates and bacteria. Budget €150–400 for a full panel.
Treat to the legal standard
Water served to guests must meet DL 69/2023, Portugal's transposition of the EU Drinking Water Directive. In practice that means the full multi-barrier train: sediment → activated carbon → UV, with logged filter changes.
Notify and maintain
Guest accommodation requires DGS notification and a Legionella Prevention Plan under Lei 52/2018 — plus a written maintenance log. Boring paperwork, but it is what keeps the licence.
Build it from the library
Six water projects you can build this sprint
Every component of Level A exists as a step-by-step module in our open Build Library — costed, tooled and safety-checked for volunteer crews.
Full research report
Lusitano Water Blueprint — PDF
The complete 50-agent research report: legal framework, source comparison table, component guide, shopping list, risk register, maintenance checklist, and next actions. 20-page PDF, free to download.
Download PDF PDF · 20 pages
Lusitano Retreat
Ready to dig deeper?
Read the full Masterplan or explore the 21-Day Build Sprint that puts all of this into practice.
